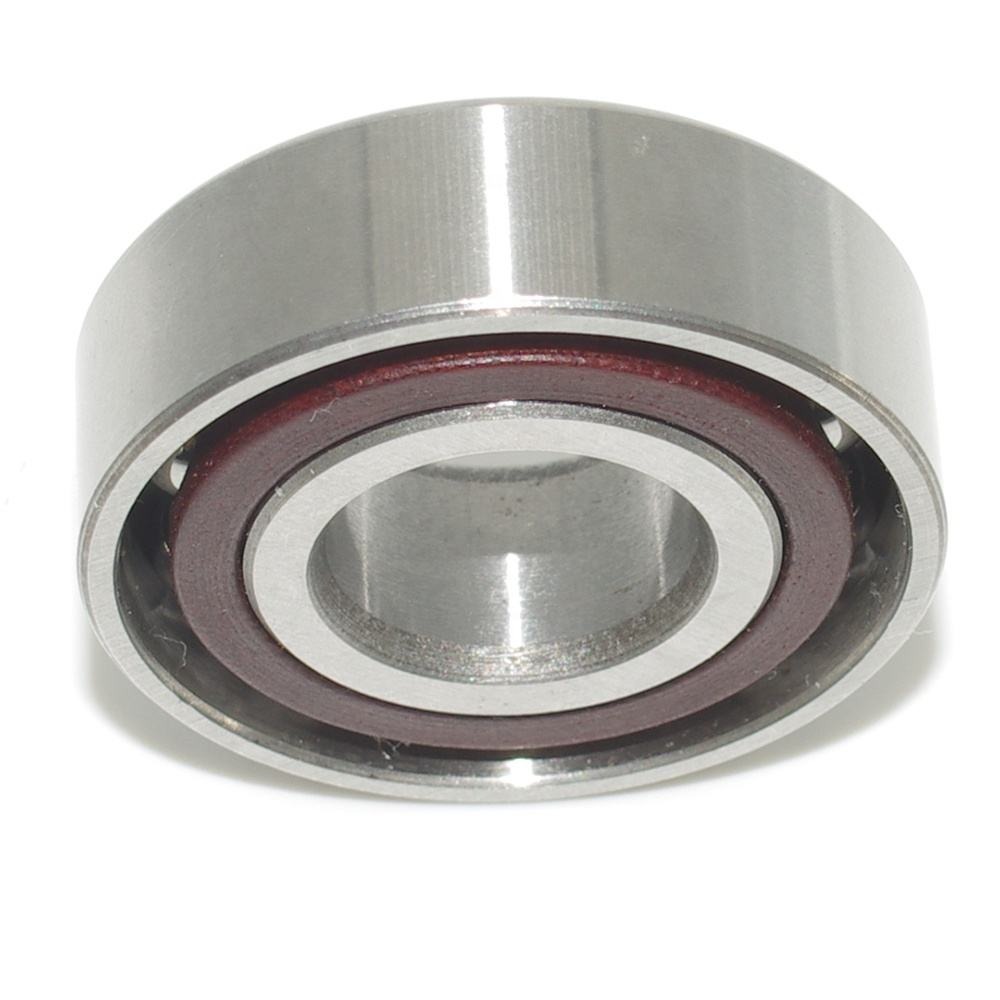

The 7203 ACCBM Angular Contact Ball Bearing is built with angular contact geometry to support radial loads together with axial (thrust) loads in one direction. The 25° contact angle is commonly selected when buyers need a balance of speed capability and axial-load handling for compact assemblies.
Item | Specification |
Bearing designation | 7203 ACCBM |
Type | Single-row angular contact ball bearing |
Dimensions (ID × OD × W) | 17 × 40 × 12 mm |
Contact angle | 25° |
Sealing | Open |
Rows | Single row |
Approx. mass | ≈ 0.065 kg |
Ring material | GCr15 / Chrome steel |
Ball material | GCr15 / Chrome steel |
Cage material | Brass |
Precision rating options | P0, P6, P5, P4, P2 |
Mounting options | Tandem (DT), Back-to-Back (DB), Face-to-Face (DF) |
A single-row angular contact bearing typically carries axial load in one direction, so many machines use paired arrangements (DB/DF) to handle axial loads from both directions or to increase rigidity. If you tell us your thrust direction, speed, and shaft/housing fits, we can recommend the preferred arrangement and precision grade for your procurement spec.
This model is used across general industrial fields such as manufacturing plants, machinery repair, construction works, energy & mining, and other equipment requiring compact, reliable combined-load bearings. If your application has higher speed, tighter runout limits, or temperature constraints, specify your operating conditions so we can match the right precision class and supply configuration.
We offer OEM service including customer logo/marking, sample orders, and packaging “as customer required” for bulk purchasing and distributor needs. These OEM/private label and packaging requirements are common in B2B bearing sourcing and supplier qualification workflows.
Price is negotiable based on quantity, precision grade (P0–P2), packaging, and delivery terms. For the fastest quote, send: designation (7203 ACCBM), required quantity, precision grade, target application (speed/load), packaging requirements, and destination port/ZIP.
Q1: Can 7203 ACCBM take axial load in both directions?
A: As a single-row angular contact bearing, it primarily supports axial load in one direction; for both-direction thrust, buyers often use a matched pair (DB or DF) or consider a double-row bearing based on space and stiffness needs.
Q2: Which precision grade should I choose (P0/P6/P5/P4/P2)?
A: P0/P6 is typical for general equipment; P5/P4/P2 is often specified when higher running accuracy, lower runout, or higher speed performance is required.
Q3: Can you provide OEM logo/marking and private label packaging?
A: Yes—share your marking content (text/logo), carton label rules, and packing spec, and we will confirm feasibility and sampling.
Q4: Do you offer samples before mass orders?
A: Yes, samples are available for fit-up and internal approval prior to wholesale delivery.
Send your required quantity and precision grade, and I’ll also generate an inquiry-ready “RFQ message template” you can place on the page to increase form submissions.
