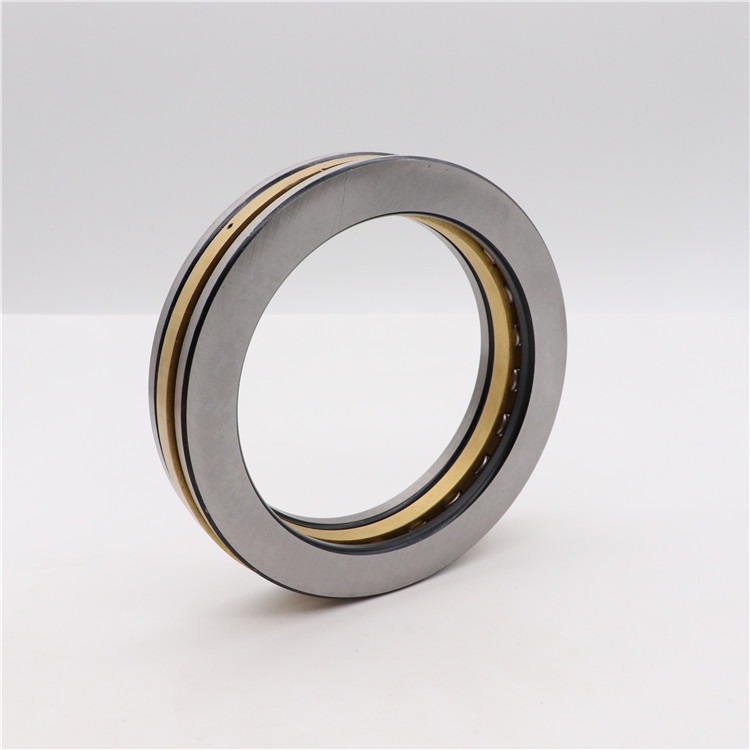

The 81238 MPB is a heavy-duty cylindrical roller thrust bearing measuring 190 mm (ID) × 270 mm (OD) × 62 mm (Height). Engineered with small-diameter cylindrical rollers and a solid machined brass/bronze cage (MPB/M), it delivers exceptionally high axial load-carrying capacity in a compact radial footprint. Manufactured from premium Chrome Steel, this single-direction thrust bearing is ideal for extruders, heavy gearboxes, and large industrial pumps. We support B2B manufacturers with OEM branding, customizable precision grades (P0 to P5), and flexible T/T payment terms.
The 81238 Cylindrical Roller Thrust Bearing is designed specifically to accommodate heavy axial loads and peak shock loads in one direction; it is not designed to support any radial loads. The bearing utilizes flat cylindrical rollers, providing a much larger contact area with the raceways compared to ball thrust bearings. This results in high rigidity and the ability to bear massive thrust forces despite having a relatively low radial cross-section.
Important Installation Note: Because these bearings do not limit the radial displacement of the shaft relative to the housing, it is critical to ensure that the inner ring (shaft washer) axis and the outer ring (housing washer) axis are perfectly aligned during mounting.
Please use the following data to verify fitment for your heavy machinery assemblies.
Item | Specification |
|---|---|
Bearing Designation | 81238 MPB (or 81238M) |
Inner Diameter (d) | 190 mm |
Outer Diameter (D) | 270 mm |
Height / Thickness (H) | 62 mm |
Material | Chrome Steel (GCr15) |
Cage Material | Machined Brass / Bronze (MPB / M) |
Dynamic Load Rating (Ca) | ≈ 880 kN |
Static Load Rating (C0a) | ≈ 3,000 kN |
Limiting Speed | ≈ 1,250 RPM |
Precision Rate | P0 (Standard), P6, P5 available upon request |
The 81238 MPB is engineered for uncompromising performance in high-stress, low-speed environments:
Massive Static Load Capacity: With a static load rating of 3,000,000 Newtons, it easily handles extreme shock and peak axial forces common in heavy manufacturing.
Solid Bronze/Brass Cage: The "MPB" or "M" suffix denotes a machined brass/bronze cage. This cage type provides excellent guidance for the rollers, reduces friction, and withstands heavy vibrations far better than standard stamped steel cages.

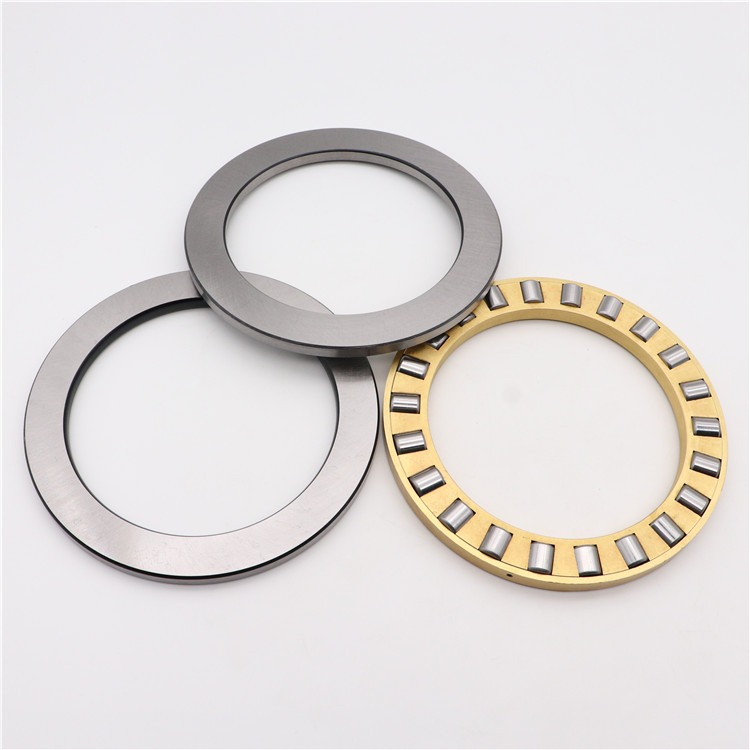

Separable Design: The shaft washer, housing washer, and roller-cage assembly are completely separable. This makes installation, inspection, and maintenance significantly easier on large machine shafts.
Due to its 190 mm bore size and high axial rigidity, the 81238 MPB is primarily utilized in heavy industrial power transmission:
Plastic and rubber extruders.
Heavy-duty industrial gearboxes and rotary tables.
Large-scale water pumps and compressors.
Oil rig components and mining material handling.
We provide reliable manufacturing and supply solutions tailored to global OEMs and aftermarket distributors.
OEM Services: We can laser-etch your brand, part numbers, or QR codes directly onto the bearing washers.
Packaging: Securely packed in industrial cartons and wooden pallets suitable for heavy international freight.
Payment Term: 30% T/T in advance as a deposit, with the remaining 70% T/T paid before shipment.
