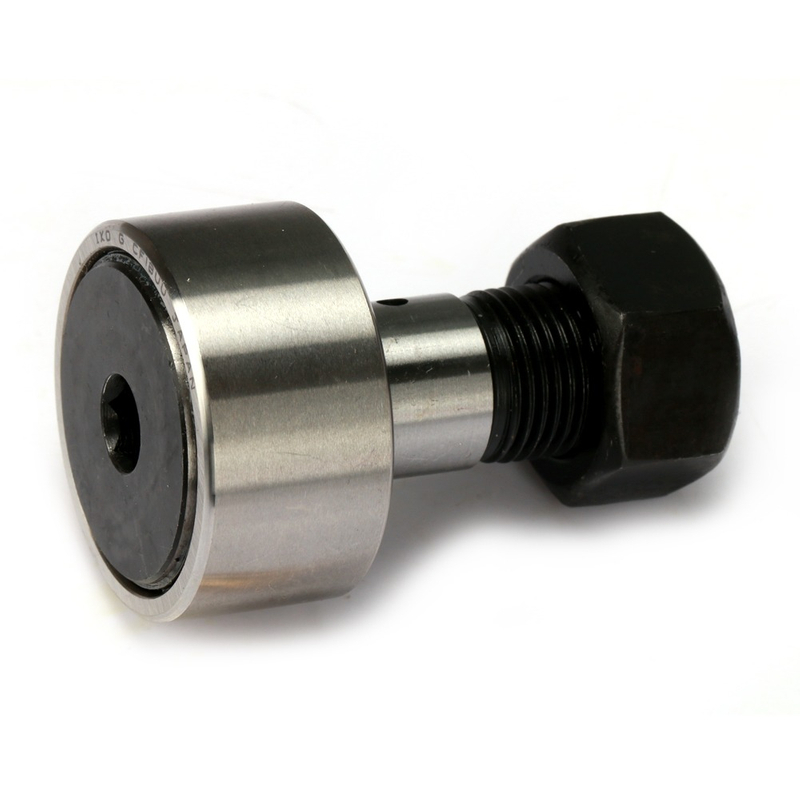

The CF10 Cam Follower is a robust, stud-type track roller bearing designed for high-load, linear motion applications. It features a thick-walled 22 mm outer ring (D) and an integrated M10×1.25 threaded stud for fast, secure mounting. Internally equipped with precision needle rollers, the CF10 easily handles heavy radial loads and absorbs shock, making it the perfect guiding component for automated production lines, conveyor systems, and sliding machine doors. Available in standard (CF10) and oversized outer ring (CF10-1) variants.
The CF Series Cam Follower (also known as a bolted track roller) is essentially a needle roller bearing with a thick outer ring and a solid stud replacing the standard inner ring. The extraordinarily thick outer ring allows it to roll directly against track surfaces or cams without deforming under high radial stress. The integrated threaded stud ensures easy mounting to machine frames using a standard hexagonal nut, eliminating the need to machine complex shaft pins.
Please reference the engineering data below to ensure proper mounting thread and track clearance.
Item | Specification |
|---|---|
Model Number | CF10 |
Outer Ring Diameter (D) | 22 mm |
Outer Ring Width (C) | 12 mm |
Stud Diameter (G) | 10 mm |
Stud Thread (D1) | M10 × 1.25 |
Total Length (B1 max) | 36.2 mm |
Thread Length (G1) | 12 mm |
Dynamic Load Rating (C) | 410 kgf |
Static Load Rating (C0) | 320 kgf |
Weight | 44 g |
(Note: Data strictly derived from the CF series engineering chart. We also supply the CF10-1 variant, which features a larger 26 mm outer diameter on the same M10 stud for tracks requiring a wider rolling profile).
The CF10 provides critical mechanical advantages for OEMs building linear motion or cam-driven mechanisms:
Built-in Lubrication System: The stud is hollowed (as shown by the M designation and lubrication hole) and fitted with a grease nipple on the flanged end, allowing for easy re-lubrication without disassembling the machine.
Crowned Outer Ring: The outer ring features a slightly convex (crowned) profile with an R500 curvature. This intelligent design helps alleviate edge stresses on the bearing caused by slight track misalignments.
Heavy Radial Capacity: The dense packing of needle rollers allows this extremely compact 44g bearing to safely support dynamic loads up to 410 kgf (approx. 4,020 Newtons).
Because they combine a bearing, shaft, and mounting hardware into a single ready-to-use unit, CF10 cam followers are heavily utilized in:
Automated packaging and bottling conveyor lines.
Guide rollers for sliding industrial doors and heavy machine guards.
Tool changers and cam mechanisms in CNC machinery.
Material handling and sorting equipment.
We manufacture the complete CF series (from CF5 up to CF30-2) to support your diverse engineering requirements.
Customization: Available with specific seal types (e.g., rubber lip seals to prevent dust ingress) or eccentric studs (CFE series) for adjustable track clearances.
Packaging: Securely packed in industrial trays or individual boxes depending on your distribution needs.
Lead Time: Fast fulfillment for bulk orders with highly competitive factory-direct pricing. Contact our sales team with your volume requirements.
The CF Series Cam Follower (also known as a bolted track roller) is essentially a needle roller bearing with a thick outer ring and a solid stud replacing the standard inner ring. The extraordinarily thick outer ring allows it to roll directly against track surfaces or cams without deforming under high radial stress. The integrated threaded stud ensures easy mounting to machine frames using a standard hexagonal nut, eliminating the need to machine complex shaft pins.
Please reference the engineering data below to ensure proper mounting thread and track clearance.
Item | Specification |
|---|---|
Model Number | CF10 |
Outer Ring Diameter (D) | 22 mm |
Outer Ring Width (C) | 12 mm |
Stud Diameter (G) | 10 mm |
Stud Thread (D1) | M10 × 1.25 |
Total Length (B1 max) | 36.2 mm |
Thread Length (G1) | 12 mm |
Dynamic Load Rating (C) | 410 kgf |
Static Load Rating (C0) | 320 kgf |
Weight | 44 g |
(Note: Data strictly derived from the CF series engineering chart. We also supply the CF10-1 variant, which features a larger 26 mm outer diameter on the same M10 stud for tracks requiring a wider rolling profile).
The CF10 provides critical mechanical advantages for OEMs building linear motion or cam-driven mechanisms:
Built-in Lubrication System: The stud is hollowed (as shown by the M designation and lubrication hole) and fitted with a grease nipple on the flanged end, allowing for easy re-lubrication without disassembling the machine.
Crowned Outer Ring: The outer ring features a slightly convex (crowned) profile with an R500 curvature. This intelligent design helps alleviate edge stresses on the bearing caused by slight track misalignments.
Heavy Radial Capacity: The dense packing of needle rollers allows this extremely compact 44g bearing to safely support dynamic loads up to 410 kgf (approx. 4,020 Newtons).
Because they combine a bearing, shaft, and mounting hardware into a single ready-to-use unit, CF10 cam followers are heavily utilized in:
Automated packaging and bottling conveyor lines.
Guide rollers for sliding industrial doors and heavy machine guards.
Tool changers and cam mechanisms in CNC machinery.
Material handling and sorting equipment.
We manufacture the complete CF series (from CF5 up to CF30-2) to support your diverse engineering requirements.
Customization: Available with specific seal types (e.g., rubber lip seals to prevent dust ingress) or eccentric studs (CFE series) for adjustable track clearances.
Packaging: Securely packed in industrial trays or individual boxes depending on your distribution needs.
Lead Time: Fast fulfillment for bulk orders with highly competitive factory-direct pricing. Contact our sales team with your volume requirements.
