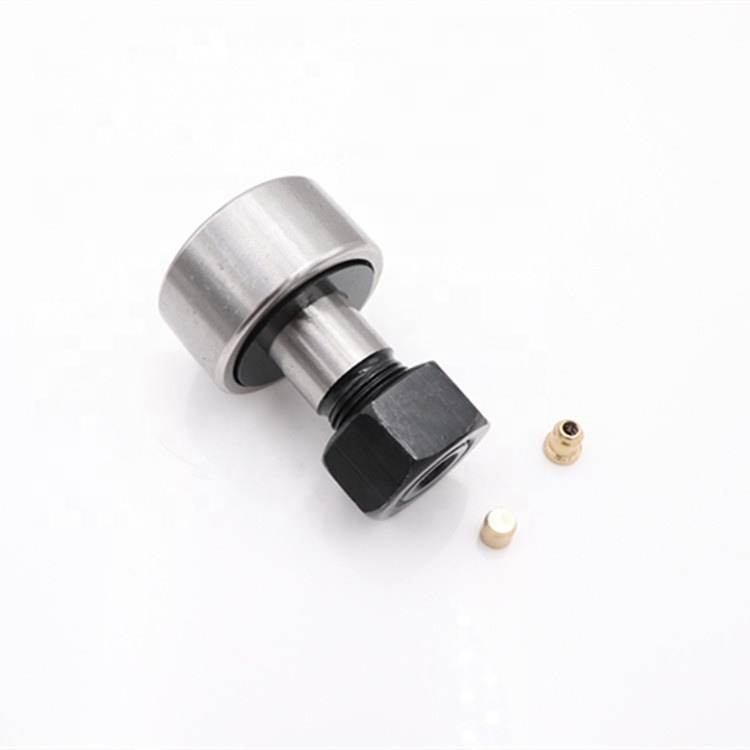

The CF24 and CF24-1 are heavy-duty, stud-type cam follower track roller bearings designed to manage massive radial shock loads in linear motion systems. Featuring a robust M24×1.5 threaded stud, the standard CF24 offers a 62 mm outer diameter, while the CF24-1 provides an oversized 72 mm outer profile. Manufactured from premium GCr15 bearing steel to ISO9001:2000 standards, these bearings are critical components for large machine tools, automated packaging lines, and heavy reduction gears. We supply global B2B OEMs with customizable precision grades (P0 to P4), fast delivery, and flexible payment terms.
The CF Series Cam Follower is a highly rigid, compact bearing unit that incorporates precision needle rollers within a thick-walled outer ring. Instead of a standard inner ring, it utilizes a solid steel stud (shaft) with external threads, allowing for rapid and secure bolt-on installation to machine chassis. Because the outer ring rolls directly against cams or linear tracks, the thick-walled design prevents deformation under severe impact loads.
We offer both the standard and oversized outer diameter versions to perfectly match your track clearances.
Specification | CF24 (Standard) | CF24-1 (Oversized) |
|---|---|---|
Stud Diameter (d1) | 24 mm | 24 mm |
Outer Diameter (D) | 62 mm | 72 mm |
Stud Thread (G) | M24 × 1.5 | M24 × 1.5 |
Total Length (B1 / L) | 80.1 mm | 80.1 mm |
Outer Ring Width (C) | 29 mm | 29 mm |
Basic Dynamic Load (C) | 30.5 kN (30,500 N) | 30.5 kN (up to 46.6 kN Full Complement) |
Basic Static Load (C0) | 52.6 kN (52,662 N) | 52.6 kN (up to 92.0 kN Full Complement) |
To meet the specific demands of varying industrial environments, we offer several internal configurations:
Roller Guiding: Available with a standard cage for high-speed operation, or as a "Full Complement" (VB suffix) design, which removes the cage to pack in more needle rollers, drastically increasing the load capacity for low-speed, high-impact applications.
Outer Ring Shape: Choose from a cylindrical flat profile for standard tracks, or a crowned (spherical) profile (UUR suffix) to alleviate edge stress caused by slight track misalignment.
Hex Socket: We can supply studs with a hex socket head (SK suffix) to facilitate easy tightening with an Allen wrench in confined spaces.
These large-scale cam followers are engineered for heavy industry and automation:
Wheel shaft boxes and large machine tool guideways.
Port engineering, shipbuilding, and heavy material handling conveyors.
Agricultural machinery, tractors, and woodworking equipment.
Industrial robotics and automated packaging lines.
As a direct manufacturer, we offer highly competitive supply chain solutions for wholesale distributors and heavy equipment builders.
Materials: Standard GCr15 Chrome Steel, with options for Carbon Steel or Stainless Steel depending on your corrosion resistance needs.
Lead Time: Normally 3–15 days for ready goods and stock.
Payment Terms: 100% T/T, 30% T/T deposit (70% against B/L copy or L/C), Western Union, and PayPal supported.
